Kernel objects are the building blocks of an RTOS. In AKOS, they are the runtime structures the kernel manages on behalf of the application: threads, messages, timers, priorities, and the control state that keeps them moving together.

This chapter gives you a simple map of those objects before the later chapters go into each subsystem in detail.

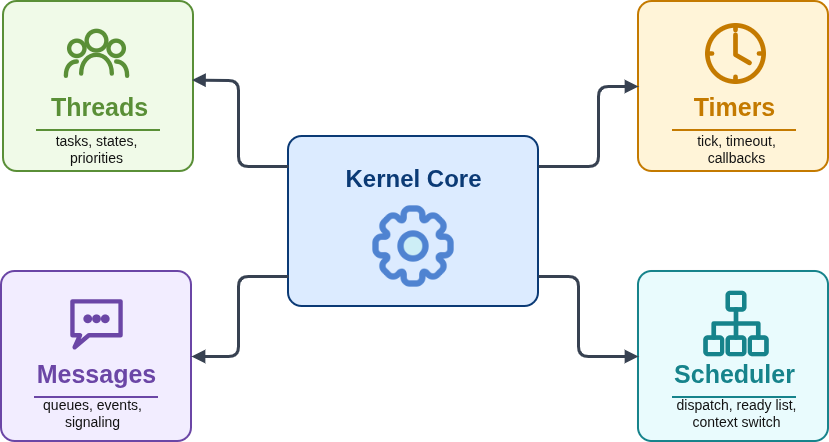

Kernel objects overview

Kernel Objects

At a high level, AKOS organizes its kernel around a few core objects:

Threads for execution
Message queues for communication
Software timers for delayed work
Priority state for run ordering
Critical sections for protecting shared kernel data

These objects are not isolated features. They are connected: threads wait for messages, timers wake threads up, and the scheduler decides which ready thread runs next.

Threads

A thread is the basic unit of execution in AKOS. Each thread has:

A thread ID
An entry function
An argument pointer
A priority
A message queue size
A requested stack size

AKOS_THREAD_DEFINE(...) is the static thread-definition API. It creates the compile-time thread definition that the kernel later turns into a runtime thread object during system startup.

The thread subsystem also keeps track of runtime thread state, such as whether a thread is running, ready, delayed, or waiting on a message.

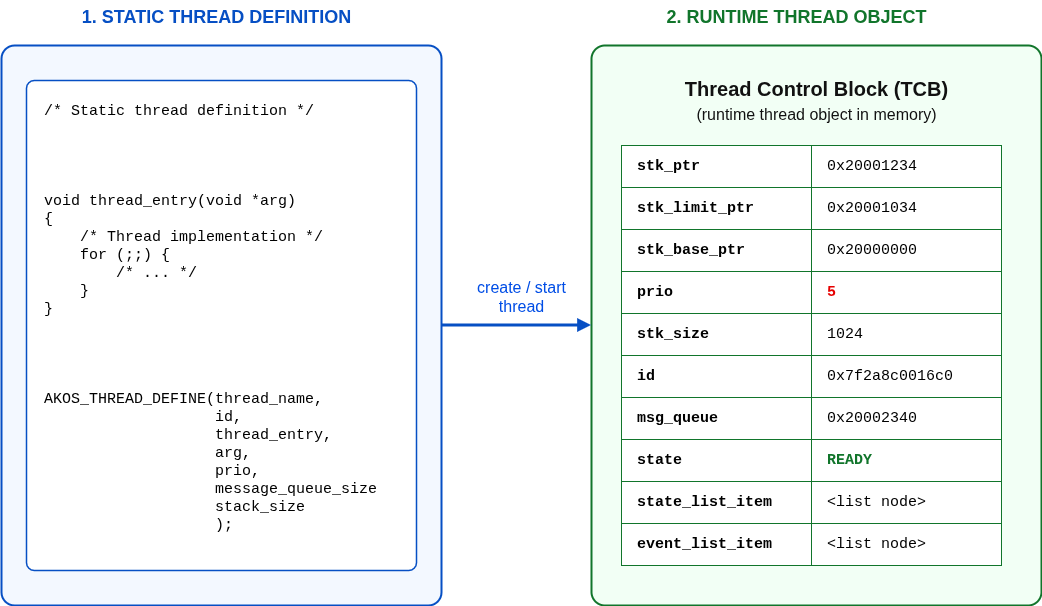

Thread objects diagram

Messages

Messages are the main communication object in AKOS. They let one thread wake another thread up with either:

A pure signal
A signal plus copied payload data

The message subsystem uses:

msg_t for the message node
msg_queue_t for the queue metadata
akos_message_queue_put_pure()
akos_message_queue_put_dynamic()
akos_message_queue_get()

This gives application code a clean way to pass events between threads without sharing state directly.

Timers

Timers are another kernel object that build on top of the message system. A timer can expire once or repeat periodically, and when it expires it can post a signal to a destination thread or invoke a callback.

The timer subsystem revolves around ak_timer_t and APIs such as:

Timers are especially useful when you want delayed work, periodic polling, small callback functions, or time-based events without blocking a thread.

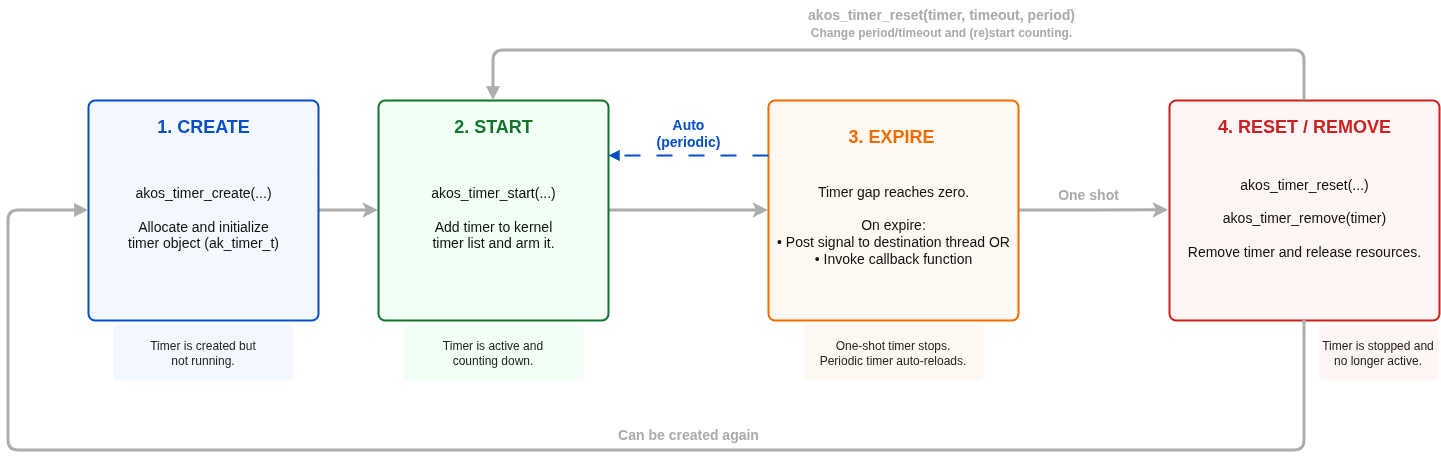

Timers life cycle

Priority And Scheduling

Priority is what ties the kernel objects together. AKOS uses priority tracking to decide which ready thread should run next.

That means:

A higher-priority ready thread can preempt lower-priority work
Delayed or blocked threads stay out of the ready set
The kernel can quickly pick the next runnable thread

The scheduler is the control point that turns thread state into actual CPU execution.

Kernel Control

AKOS also needs a small amount of kernel control logic around those objects. That is where core comes in.

The main control APIs are:

akos_core_init() prepares the kernel subsystems, while akos_core_run() hands control to the scheduler. The critical-section APIs protect shared kernel data structures so the object lists stay consistent across interrupts and thread context.

Interrupt Context

Interrupt service routines are not kernel objects in the same sense as threads or timers, but they matter because they can interact with the kernel at the boundaries.

In AKOS, interrupts typically feed events into the system, while the kernel keeps the runtime objects consistent and decides when a thread should wake up and run.

Why This Matters

Once you understand the kernel objects, the rest of the documentation becomes much easier to read:

Threads management explains how threads are created and managed.
Scheduler explains how priorities turn into run order.
Timers management explains delayed and periodic work.
Inter-thread Communication explains how messages move between threads.

The short version is simple: AKOS is built from a handful of kernel objects, and the scheduler keeps them working together.
