timer.h File Reference

Software timer APIs. More...

#include "list.h"
#include <stdint.h>
#include <stdbool.h>

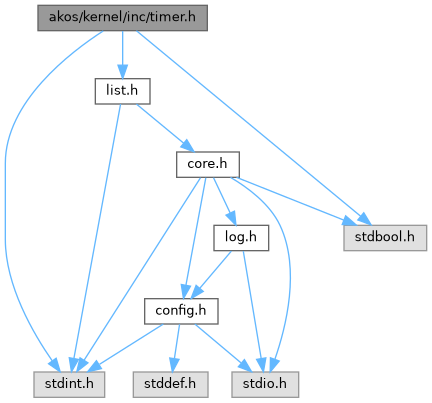

Include dependency graph for timer.h:

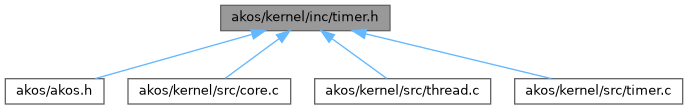

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ak_timer_t
	Software timer object type. More...

Typedefs
typedef struct timer_pool	timer_pool_t
	Internal timer pool type.
typedef uint8_t	timer_id_t
	Timer identifier type.
typedef void(*	timer_cb) ()
	Timer callback signature.

Enumerations
enum	timer_type_t { TIMER_ONE_SHOT , TIMER_PERIODIC }
	Timer mode. More...

Functions
void	akos_timer_init (void)
	Initialize timer module.
void	akos_timer_processing ()
	Timer thread processing loop.
ak_timer_t *	akos_timer_create (timer_id_t id, int32_t sig, timer_cb func_cb, uint8_t des_thread_id, uint32_t period, timer_type_t type)
	Create a timer object from timer pool.
void	akos_timer_start (ak_timer_t *p_timer, uint32_t tick_to_wait)
	Start a timer.
void	akos_timer_reset (ak_timer_t *p_timer)
	Reset a running timer.
void	akos_timer_remove (ak_timer_t *p_timer)
	Remove timer from active lists and return to pool.

Detailed Description

Software timer APIs.

Author

Snoopy3921 - AK Foundation

Date

2026/05/08

Definition in file timer.h.

Typedef Documentation

timer_cb

typedef void(* timer_cb) ()

Timer callback signature.

Callback runs in timer-thread context; keep execution short and non-blocking.

Definition at line 37 of file timer.h.

timer_id_t

typedef uint8_t timer_id_t

Timer identifier type.

Definition at line 29 of file timer.h.

timer_pool_t

typedef struct timer_pool timer_pool_t

Internal timer pool type.

Definition at line 27 of file timer.h.

Enumeration Type Documentation

timer_type_t

enum timer_type_t

Timer mode.

Enumerator
TIMER_ONE_SHOT	Expires once and then stops.
TIMER_PERIODIC	Reloads using timer.period.

Definition at line 43 of file timer.h.

Function Documentation

akos_timer_create()

ak_timer_t * akos_timer_create	(	timer_id_t	id,
		int32_t	sig,
		timer_cb	func_cb,
		uint8_t	des_thread_id,
		uint32_t	period,
		timer_type_t	type )

Create a timer object from timer pool.

@brief Create timer object from timer pool.
@param id Timer ID.
@param sig Signal posted when timer expires.
@param func_cb Optional callback executed on expiry.

Parameters

des_thread_id	Destination thread ID for signal posting.
period	Period in ticks for periodic timers.
type	Timer type (one-shot or periodic).

Returns

Created timer pointer, or NULL on failure.

Parameters

id	Timer ID.
sig	Signal posted on timeout.
func_cb	Optional callback run on timeout.
des_thread_id	Destination thread ID for signal posting.
period	Period in ticks for periodic timer.
type	Timer type.

Returns

Timer pointer, or NULL on failure.

Definition at line 146 of file timer.c.

akos_timer_init()

void akos_timer_init

(

void

)

Initialize timer module.

Initialize timer module.

Definition at line 234 of file timer.c.

akos_timer_processing()

void akos_timer_processing

(

)

Timer thread processing loop.

Timer thread processing loop.

Processes expired timers, executes callbacks/posts signals, then blocks until the next timer event (or a wakeup message).

Definition at line 247 of file timer.c.

akos_timer_remove()

void akos_timer_remove

(

ak_timer_t *

p_timer

)

Remove timer from active lists and return to pool.

Parameters

p_timer

Timer pointer.

Remove timer from active lists and return to pool.

Parameters

p_timer

Timer object.

Definition at line 211 of file timer.c.

akos_timer_reset()

void akos_timer_reset

(

ak_timer_t *

p_timer

)

Reset a running timer.

Parameters

p_timer

Timer pointer.

Reset a running timer.

Parameters

p_timer

Timer object.

Definition at line 321 of file timer.c.

akos_timer_start()

void akos_timer_start	(	ak_timer_t *	p_timer,
		uint32_t	tick_to_wait )

Start a timer.

Parameters

p_timer	Timer pointer.
tick_to_wait	Initial delay in ticks.

Start a timer.

Parameters

p_timer	Timer object.
tick_to_wait	Initial delay in ticks.

Definition at line 306 of file timer.c.
