message.h File Reference

Message object and message queue APIs. More...

#include "config.h"
#include <stdint.h>
#include <stdbool.h>

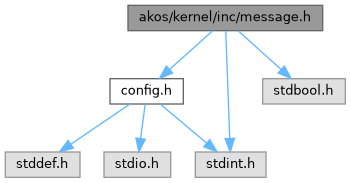

Include dependency graph for message.h:

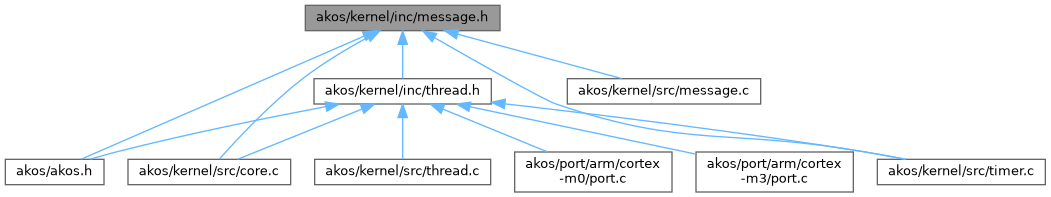

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	msg_t
	Message object stored in queues. More...
struct	msg_queue_t
	FIFO queue metadata for thread messaging. More...

Typedefs
typedef struct msg_pool	msg_pool_t
	Internal message-pool type.

Enumerations
enum	msg_type_t { MSG_TYPE_PURE = 0 , MSG_TYPE_DYNAMIC }
	Message payload model. More...

Functions
void	akos_message_init (void)
	Initialize global message pool.
void	akos_message_free (msg_t *p_msg)
	Return message to message pool.
void	akos_message_queue_init (msg_queue_t *p_msg_q, uint8_t size)
	Initialize message queue.
void	akos_message_queue_put_dynamic (msg_queue_t *p_msg_q, int32_t sig, void *p_content, uint8_t size)
	Enqueue dynamic message with payload copy.
void	akos_message_queue_put_pure (msg_queue_t *p_msg_q, int32_t sig)
	Enqueue pure signal message.
msg_t *	akos_message_queue_get (msg_queue_t *p_msg_q)
	Dequeue next message.
void *	akos_message_get_dynamic_data (msg_t *p_msg, uint8_t *p_msg_size)
	Get payload data from dynamic message.
msg_t *	akos_message_queue_get_pure (msg_queue_t *p_msg_q)
	Dequeue next pure message.
int32_t	akos_message_get_pure_data (msg_t *p_msg)
	Get signal field from pure message.

Detailed Description

Message object and message queue APIs.

Author

Snoopy3921 - AK Foundation

Date

2026/05/08

Definition in file message.h.

Typedef Documentation

msg_pool_t

typedef struct msg_pool msg_pool_t

Internal message-pool type.

Definition at line 31 of file message.h.

Enumeration Type Documentation

msg_type_t

enum msg_type_t

Message payload model.

Enumerator
MSG_TYPE_PURE	Signal-only message, no payload buffer.
MSG_TYPE_DYNAMIC	Message with copied payload buffer.

Definition at line 37 of file message.h.

Function Documentation

akos_message_free()

void akos_message_free

(

msg_t *

p_msg

)

Return message to message pool.

Parameters

p_msg

Message to free.

Return message to message pool.

Parameters

p_msg

Message object to release.

Definition at line 62 of file message.c.

akos_message_get_dynamic_data()

void * akos_message_get_dynamic_data	(	msg_t *	p_msg,
		uint8_t *	p_msg_size )

Get payload data from dynamic message.

Parameters

p_msg	Message pointer.
p_msg_size	Output payload size.

Returns

Payload pointer.

Get payload data from dynamic message.

Parameters

p_msg	Message object.
p_msg_size	Output payload size in bytes.

Returns

Payload pointer.

Definition at line 253 of file message.c.

akos_message_get_pure_data()

int32_t akos_message_get_pure_data

(

msg_t *

p_msg

)

Get signal field from pure message.

Parameters

p_msg

Message pointer.

Returns

Signal value.

Get signal field from pure message.

Parameters

p_msg

Message object.

Returns

Signal value.

Definition at line 299 of file message.c.

akos_message_init()

void akos_message_init

(

void

)

Initialize global message pool.

Initialize global message pool.

Definition at line 53 of file message.c.

akos_message_queue_get()

msg_t * akos_message_queue_get

(

msg_queue_t *

p_msg_q

)

Dequeue next message.

Parameters

p_msg_q

Source queue.

Returns

Message pointer, or NULL if queue is empty.

Dequeue next message.

Parameters

p_msg_q

Source queue.

Returns

Message pointer, or NULL when empty.

Definition at line 218 of file message.c.

akos_message_queue_get_pure()

msg_t * akos_message_queue_get_pure

(

msg_queue_t *

p_msg_q

)

Dequeue next pure message.

Parameters

p_msg_q

Source queue.

Returns

Message pointer, or NULL if queue is empty.

Dequeue next pure message.

Parameters

p_msg_q

Source queue.

Returns

Message pointer, or NULL when empty.

Definition at line 265 of file message.c.

akos_message_queue_init()

void akos_message_queue_init	(	msg_queue_t *	p_msg_q,
		uint8_t	size )

Initialize message queue.

Parameters

p_msg_q	Queue object.
size	Maximum queue depth.

Initialize message queue.

Parameters

p_msg_q	Queue object.
size	Maximum queue length.

Definition at line 82 of file message.c.

akos_message_queue_put_dynamic()

void akos_message_queue_put_dynamic	(	msg_queue_t *	p_msg_q,
		int32_t	sig,
		void *	p_content,
		uint8_t	size )

Enqueue dynamic message with payload copy.

Parameters

p_msg_q	Destination queue.
sig	Message signal.
p_content	Payload pointer.
size	Payload size in bytes.

Enqueue dynamic message with payload copy.

Parameters

p_msg_q	Destination queue.
sig	Signal value.
p_content	Payload source pointer.
size	Payload size in bytes.

Definition at line 98 of file message.c.

akos_message_queue_put_pure()

void akos_message_queue_put_pure	(	msg_queue_t *	p_msg_q,
		int32_t	sig )

Enqueue pure signal message.

Parameters

p_msg_q	Destination queue.
sig	Message signal.

Enqueue pure signal message.

Parameters

p_msg_q	Destination queue.
sig	Signal value.

Definition at line 165 of file message.c.
