Thread scheduling and thread messaging APIs. More...

#include <stdint.h>
#include <stddef.h>
#include "config.h"
#include "message.h"

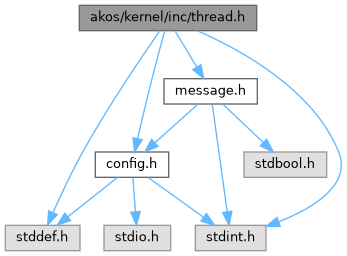

Include dependency graph for thread.h:

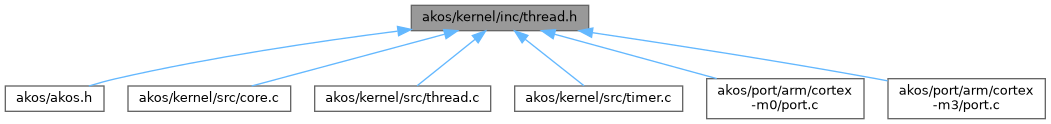

This graph shows which files directly or indirectly include this file:

Classes
struct	thread_t
	Static thread descriptor used during thread table registration. More...

Macros
#define	AKOS_THREAD_DEFINE(_name, _id, _entry, _arg, _prio, _queue_size, _stack_size)

Typedefs
typedef struct thread_tcb *	thread_handle_t
typedef void(*	thread_func_t) (void *p_arg)
	Thread entry function signature.
typedef uint8_t	thread_id_t
	Numeric thread identifier type.

Enumerations
enum	thread_state_t { THREAD_STATE_RUNNING = 0 , THREAD_STATE_READY , THREAD_STATE_DELAYED , THREAD_STATE_SUSPENDED , THREAD_STATE_SUSPENDED_ON_MSG , THREAD_STATE_DELAYED_ON_MSG }
	Runtime state of a thread control block. More...

Functions
uint32_t	akos_thread_get_tick (void)
	Get current system tick.
void	akos_thread_register_static_threads (void)
	Create all statically defined threads and kernel internal threads.
uint8_t	akos_thread_get_app_thread_count (void)
	Get number of application threads defined via AKOS_THREAD_DEFINE.
uint8_t	akos_thread_get_idle_thread_id (void)
	Get the runtime thread ID assigned to the idle thread.
uint8_t	akos_thread_get_timer_thread_id (void)
	Get the runtime thread ID assigned to the timer thread.
uint8_t	akos_thread_increment_tick (void)
	Tick handler routine called from SysTick.
void	akos_thread_delay (const uint32_t tick_to_delay)
	Delay current thread by specified ticks.
void	akos_thread_start (void)
	Start scheduler state.
void	akos_thread_post_msg_dynamic (uint8_t des_thread_id, int32_t sig, void *p_content, uint8_t msg_size)
	Post dynamic message to destination thread.
void	akos_thread_post_msg_pure (uint8_t des_thread_id, int32_t sig)
	Post pure signal message to destination thread.
msg_t *	akos_thread_wait_for_msg (uint32_t time_out)
	Wait for message from current thread queue.

Detailed Description

Thread scheduling and thread messaging APIs.

Author: Snoopy3921 - AK Foundation

Date: 2026/05/08

Definition in file thread.h.

Macro Definition Documentation

◆ AKOS_THREAD_DEFINE

#define AKOS_THREAD_DEFINE	(	_name,
		_id,
		_entry,
		_arg,
		_prio,
		_queue_size,
		_stack_size )

Value:

  const thread_t _name __attribute__((used, section("task_desc"))) = {                \
      .id = (thread_id_t)(_id),                                                       \
      .pf_thread = (thread_func_t)(_entry),                                           \
      .p_arg = (void *)(_arg),                                                        \
      .prio = (uint8_t)(_prio),                                                       \
      .queue_size = (size_t)(_queue_size),                                            \
      .stack_size = (size_t)(_stack_size),                                            \
  }

Definition at line 27 of file thread.h.

Typedef Documentation

◆ thread_func_t

typedef void(* thread_func_t) (void *p_arg)

Thread entry function signature.

Parameters

p_arg User-provided thread argument.

Definition at line 59 of file thread.h.

◆ thread_handle_t

typedef struct thread_tcb* thread_handle_t

Opaque pointer to internal thread control block.

Definition at line 51 of file thread.h.

◆ thread_id_t

typedef uint8_t thread_id_t

Numeric thread identifier type.

Definition at line 65 of file thread.h.

Enumeration Type Documentation

◆ thread_state_t

enum thread_state_t

Runtime state of a thread control block.

Enumerator
THREAD_STATE_RUNNING	Currently executing thread.
THREAD_STATE_READY	Ready to run, waiting for CPU.
THREAD_STATE_DELAYED	Blocked until tick timeout expires.
THREAD_STATE_SUSPENDED	Suspended explicitly by kernel/app logic.
THREAD_STATE_SUSPENDED_ON_MSG	Waiting for message without timeout.
THREAD_STATE_DELAYED_ON_MSG	Waiting for message with timeout.

Definition at line 41 of file thread.h.

Function Documentation

◆ akos_thread_delay()

void akos_thread_delay ( const uint32_t tick_to_delay )

Delay current thread by specified ticks.

Parameters

tick_to_delay Delay duration in ticks.

Delay current thread by specified ticks.

Parameters

tick_to_delay Delay in ticks.

Definition at line 541 of file thread.c.

◆ akos_thread_get_app_thread_count()

uint8_t akos_thread_get_app_thread_count ( void )

Get number of application threads defined via AKOS_THREAD_DEFINE.

Returns: Number of app threads linked into the image. App IDs are 0..count-1.

Definition at line 69 of file thread.c.

◆ akos_thread_get_idle_thread_id()

uint8_t akos_thread_get_idle_thread_id ( void )

Get the runtime thread ID assigned to the idle thread.

Returns: Idle thread ID.

Definition at line 74 of file thread.c.

◆ akos_thread_get_tick()

uint32_t akos_thread_get_tick ( void )

Get current system tick.

Returns: Tick counter.

Get current system tick.

Returns: Current tick value.

Definition at line 64 of file thread.c.

◆ akos_thread_get_timer_thread_id()

uint8_t akos_thread_get_timer_thread_id ( void )

Get the runtime thread ID assigned to the timer thread.

Returns: Timer thread ID.

Definition at line 79 of file thread.c.

◆ akos_thread_increment_tick()

uint8_t akos_thread_increment_tick ( void )

Tick handler routine called from SysTick.

Returns: OS_TRUE if context switch is needed, otherwise OS_FALSE.

Tick handler routine called from SysTick.

Returns: OS_TRUE if context switch is needed, otherwise OS_FALSE.

Definition at line 471 of file thread.c.

◆ akos_thread_post_msg_dynamic()

void akos_thread_post_msg_dynamic	(	uint8_t	des_thread_id,
		int32_t	sig,
		void *	p_content,
		uint8_t	msg_size )

Post dynamic message to destination thread.

Parameters

des_thread_id	Destination thread ID.
sig	Message signal.
p_content	Payload pointer.
msg_size	Payload size in bytes.

Post dynamic message to destination thread.

Parameters

des_thread_id	Destination thread ID.
sig	Message signal.
p_content	Payload pointer.
msg_size	Payload size in bytes.

Definition at line 571 of file thread.c.

◆ akos_thread_post_msg_pure()

void akos_thread_post_msg_pure	(	uint8_t	des_thread_id,
		int32_t	sig )

Post pure signal message to destination thread.

Parameters

des_thread_id	Destination thread ID.
sig	Message signal.

Post pure signal message to destination thread.

Parameters

des_thread_id	Destination thread ID.
sig	Message signal.

Definition at line 654 of file thread.c.

◆ akos_thread_register_static_threads()

void akos_thread_register_static_threads ( void )

Create all statically defined threads and kernel internal threads.

Definition at line 402 of file thread.c.

◆ akos_thread_start()

void akos_thread_start ( void )

Start scheduler state.

Definition at line 555 of file thread.c.

◆ akos_thread_wait_for_msg()

msg_t * akos_thread_wait_for_msg ( uint32_t time_out )

Wait for message from current thread queue.

Parameters

time_out Timeout in ticks. Use OS_CFG_DELAY_MAX for infinite wait.

Returns: Message pointer, or NULL on timeout.

Wait for message from current thread queue.

Parameters

time_out Timeout in ticks. Use OS_CFG_DELAY_MAX for infinite wait.

Returns: Message pointer, or NULL on timeout.

Definition at line 735 of file thread.c.
