message.c File Reference

Message pool and queue implementation. More...

#include "message.h"
#include "memory.h"
#include "core.h"
#include <stdint.h>
#include <string.h>

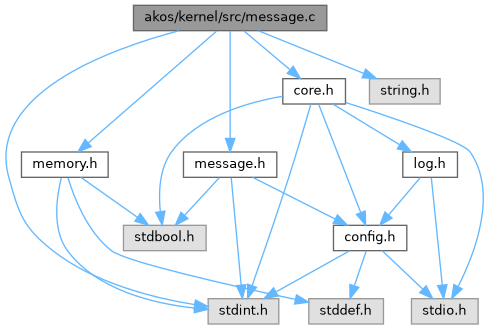

Include dependency graph for message.c:

Go to the source code of this file.

Functions
void	akos_message_init (void)
	Initialize message subsystem.
void	akos_message_free (msg_t *p_msg)
	Free a message and return resources to pools.
void	akos_message_queue_init (msg_queue_t *p_msg_q, uint8_t size)
	Initialize a message queue.
void	akos_message_queue_put_dynamic (msg_queue_t *p_msg_q, int32_t sig, void *p_content, uint8_t size)
	Enqueue dynamic message and copy payload.
void	akos_message_queue_put_pure (msg_queue_t *p_msg_q, int32_t sig)
	Enqueue pure message (signal only).
msg_t *	akos_message_queue_get (msg_queue_t *p_msg_q)
	Dequeue next message from queue.
void *	akos_message_get_dynamic_data (msg_t *p_msg, uint8_t *p_msg_size)
	Access payload pointer and payload size from dynamic message.
msg_t *	akos_message_queue_get_pure (msg_queue_t *p_msg_q)
	Dequeue next pure message from queue.
int32_t	akos_message_get_pure_data (msg_t *p_msg)
	Read signal value from pure message.

Detailed Description

Message pool and queue implementation.

Author

Snoopy3921 - AK Foundation

Date

2026/05/08

Definition in file message.c.

Function Documentation

akos_message_free()

void akos_message_free

(

msg_t *

p_msg

)

Free a message and return resources to pools.

Return message to message pool.

Parameters

p_msg

Message object to release.

Definition at line 62 of file message.c.

akos_message_get_dynamic_data()

void * akos_message_get_dynamic_data	(	msg_t *	p_msg,
		uint8_t *	p_msg_size )

Access payload pointer and payload size from dynamic message.

Get payload data from dynamic message.

Parameters

p_msg	Message object.
p_msg_size	Output payload size in bytes.

Returns

Payload pointer.

Definition at line 253 of file message.c.

akos_message_get_pure_data()

int32_t akos_message_get_pure_data

(

msg_t *

p_msg

)

Read signal value from pure message.

Get signal field from pure message.

Parameters

p_msg

Message object.

Returns

Signal value.

Definition at line 299 of file message.c.

akos_message_init()

void akos_message_init

(

void

)

Initialize message subsystem.

Initialize global message pool.

Definition at line 53 of file message.c.

akos_message_queue_get()

msg_t * akos_message_queue_get

(

msg_queue_t *

p_msg_q

)

Dequeue next message from queue.

Dequeue next message.

Parameters

p_msg_q

Source queue.

Returns

Message pointer, or NULL when empty.

Definition at line 218 of file message.c.

akos_message_queue_get_pure()

msg_t * akos_message_queue_get_pure

(

msg_queue_t *

p_msg_q

)

Dequeue next pure message from queue.

Dequeue next pure message.

Parameters

p_msg_q

Source queue.

Returns

Message pointer, or NULL when empty.

Definition at line 265 of file message.c.

akos_message_queue_init()

void akos_message_queue_init	(	msg_queue_t *	p_msg_q,
		uint8_t	size )

Initialize a message queue.

Initialize message queue.

Parameters

p_msg_q	Queue object.
size	Maximum queue length.

Definition at line 82 of file message.c.

akos_message_queue_put_dynamic()

void akos_message_queue_put_dynamic	(	msg_queue_t *	p_msg_q,
		int32_t	sig,
		void *	p_content,
		uint8_t	size )

Enqueue dynamic message and copy payload.

Enqueue dynamic message with payload copy.

Parameters

p_msg_q	Destination queue.
sig	Signal value.
p_content	Payload source pointer.
size	Payload size in bytes.

Definition at line 98 of file message.c.

akos_message_queue_put_pure()

void akos_message_queue_put_pure	(	msg_queue_t *	p_msg_q,
		int32_t	sig )

Enqueue pure message (signal only).

Enqueue pure signal message.

Parameters

p_msg_q	Destination queue.
sig	Signal value.

Definition at line 165 of file message.c.
