list.h File Reference

Doubly-linked list types and APIs for scheduler internals. More...

#include <stdint.h>
#include "core.h"

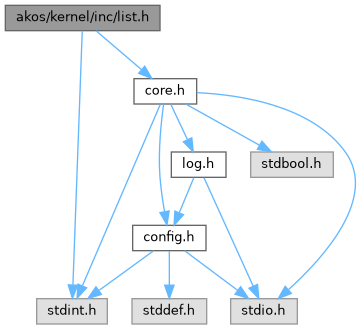

Include dependency graph for list.h:

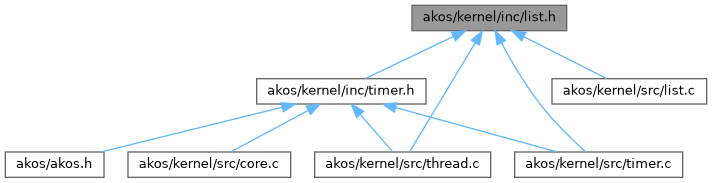

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	list_item_t
	Doubly-linked list node used by scheduler/timer lists. More...
struct	list_t
	Doubly-linked list metadata with end sentinel. More...

Macros
#define	list_item_set_owner(p_list_item, p_owner)
#define	list_item_get_owner(p_list_item)
#define	list_item_set_value(p_list_item, val)
#define	list_item_get_value(p_list_item)
#define	list_item_get_list_contain(p_list_item)
#define	list_get_head_item_value(p_list)
#define	list_get_head_item(p_list)
#define	list_get_owner_of_head_item(p_list)
#define	list_get_end_item(p_list)
#define	list_get_num_item(p_list)
#define	list_is_empty(p_list)

Functions
void *	akos_list_get_owner_of_next_item (list_t *const p_list)
	Get owner of next item and advance list cursor.
void	akos_list_init (list_t *const p_list)
	Initialize list metadata and sentinel.
void	akos_list_item_init (list_item_t *const p_list_item)
	Initialize list item linkage and ownership metadata.
list_item_t *	akos_list_item_get_next (list_item_t *p_list_item)
	Get next list item.
list_item_t *	akos_list_item_get_prev (list_item_t *p_list_item)
	Get previous list item.
void	akos_list_insert_end (list_t *const p_list, list_item_t *const p_list_item)
	Insert item at list tail.
void	akos_list_insert (list_t *const p_list, list_item_t *const p_list_item)
	Insert item in ascending order by list_item::value.
uint16_t	akos_list_remove (list_item_t *const p_list_item)
	Remove item from containing list.

Detailed Description

Doubly-linked list types and APIs for scheduler internals.

Author

Snoopy3921 - AK Foundation

Date

2026/05/08

Definition in file list.h.

Macro Definition Documentation

list_get_end_item

#define list_get_end_item

(

p_list

)

Value:

((p_list)->end_item)

Definition at line 62 of file list.h.

list_get_head_item

#define list_get_head_item

(

p_list

)

Value:

(((p_list)->end_item).next_ptr)

Definition at line 60 of file list.h.

list_get_head_item_value

#define list_get_head_item_value

(

p_list

)

Value:

((((p_list)->end_item).next_ptr)->value)

Definition at line 59 of file list.h.

list_get_num_item

#define list_get_num_item

(

p_list

)

Value:

(((p_list)->num_of_items))

Definition at line 63 of file list.h.

list_get_owner_of_head_item

#define list_get_owner_of_head_item

(

p_list

)

Value:

(list_item_get_owner(((p_list)->end_item).next_ptr))

Definition at line 61 of file list.h.

list_is_empty

#define list_is_empty

(

p_list

)

Value:

(((p_list)->num_of_items == (uint8_t)0) ? OS_TRUE : OS_FALSE)

Definition at line 64 of file list.h.

list_item_get_list_contain

#define list_item_get_list_contain

(

p_list_item

)

Value:

((p_list_item)->list_ptr)

Definition at line 57 of file list.h.

list_item_get_owner

#define list_item_get_owner

(

p_list_item

)

Value:

((p_list_item)->owner_ptr)

Definition at line 54 of file list.h.

list_item_get_value

#define list_item_get_value

(

p_list_item

)

Value:

((p_list_item)->value)

Definition at line 56 of file list.h.

list_item_set_owner

#define list_item_set_owner	(		p_list_item,
			p_owner )

Value:

((p_list_item)->owner_ptr = (void *)(p_owner))

Definition at line 53 of file list.h.

list_item_set_value

#define list_item_set_value	(		p_list_item,
			val )

Value:

((p_list_item)->value = (uint32_t)(val))

Definition at line 55 of file list.h.

Function Documentation

akos_list_get_owner_of_next_item()

void * akos_list_get_owner_of_next_item

(

list_t *const

p_list

)

Get owner of next item and advance list cursor.

Parameters

p_list

List pointer.

Returns

Owner pointer of next item.

Get owner of next item and advance list cursor.

Parameters

p_list

List object.

Returns

Owner pointer of next item.

Definition at line 169 of file list.c.

akos_list_init()

void akos_list_init

(

list_t *const

p_list

)

Initialize list metadata and sentinel.

Parameters

p_list

List pointer.

Initialize list metadata and sentinel.

Parameters

p_list

List object.

Definition at line 20 of file list.c.

akos_list_insert()

void akos_list_insert	(	list_t *const	p_list,
		list_item_t *const	p_list_item )

Insert item in ascending order by list_item::value.

Parameters

p_list	List pointer.
p_list_item	Item pointer.

Insert item in ascending order by list_item::value.

Parameters

p_list	Destination list.
p_list_item	Item to insert.

Definition at line 104 of file list.c.

akos_list_insert_end()

void akos_list_insert_end	(	list_t *const	p_list,
		list_item_t *const	p_list_item )

Insert item at list tail.

Parameters

p_list	List pointer.
p_list_item	Item pointer.

Insert item at list tail.

Parameters

p_list	Destination list.
p_list_item	Item to insert.

Definition at line 45 of file list.c.

akos_list_item_get_next()

list_item_t * akos_list_item_get_next

(

list_item_t *

p_list_item

)

Get next list item.

Parameters

p_list_item

Current item pointer.

Returns

Next item pointer.

Get next list item.

Parameters

p_list_item

Current list item.

Returns

Next item in list.

Definition at line 79 of file list.c.

akos_list_item_get_prev()

list_item_t * akos_list_item_get_prev

(

list_item_t *

p_list_item

)

Get previous list item.

Parameters

p_list_item

Current item pointer.

Returns

Previous item pointer.

Get previous list item.

Parameters

p_list_item

Current list item.

Returns

Previous item in list.

Definition at line 91 of file list.c.

akos_list_item_init()

void akos_list_item_init

(

list_item_t *const

p_list_item

)

Initialize list item linkage and ownership metadata.

Parameters

p_list_item

List item pointer.

Initialize list item linkage and ownership metadata.

Parameters

p_list_item

List item.

Definition at line 35 of file list.c.

akos_list_remove()

uint16_t akos_list_remove

(

list_item_t *const

p_list_item

)

Remove item from containing list.

Parameters

p_list_item

Item pointer.

Returns

Remaining number of items in the list after removal.

Remove item from containing list.

Parameters

p_list_item

Item to remove.

Returns

Remaining number of items in the list.

Definition at line 141 of file list.c.
